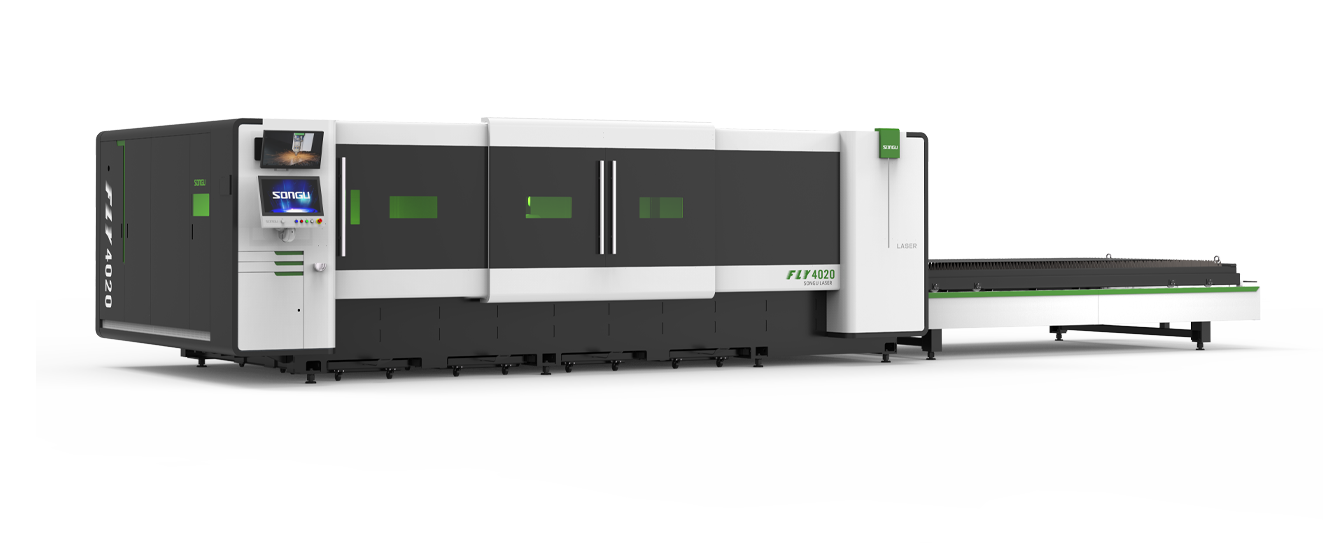

FLY SERIES FIBER LASER CUTTER

Laser power: 6000-30000W

Songu Laser Technology’s FLY series high-speed fiber laser cutting machine has a high-precision servo motor and transmission mechanism. It adopts an enclosed external protection design with CE protection glass safety windows.

The Y-axis skateboard is cast aluminum and equipped with an integrated Z-axis system using a double-layer translation exchange platform. Suitable for 30mm stainless steel and aluminum alloy laser cutting.

Features

Intergrated multi-functions into one, create more value for customer

Auto-exchange tablev

Hydraulic lifting platform, stable and efficient cutting;

German quality components

The key components are all German accessories, high-end configuration, good stability and durability;

High-precision drive system

Driven by high-precision servo motor, equipped with high-precision transmission mechanism, high installation accuracy, large transmission torque, small transmission, and good dynamic characteristics;

Energy-saving device

Equipped with automatic energy-saving device,the machine will automatically enter the hibernation state when the equipment is suspended for more than 5min;

CCD eagle eye

Optional CCD eagle eye recognition technology, optical eye search edge, extremely fast. Supports secondary cutting functional, secondary processing is easy, and waste cutting can also be handled freely;

Self-developed technology

Developed variable frequency cutting zoom perforation technology ensures high-efficiency and high-quality processing of plates of different thicknesses and materials.

Specification

Optimization and innovation, make product faster, more stable, more assured.

  • Model
  • Working width
  • Laser power
  • Max positioning acceleration
  • Repeated positioning accuracy
  • Positioning accuracy
  • Max coordinated speed
  • Working table exchange time
  • Weight
  • Overall dimension
  • MACH3015
  • 3000×1500mm
  • 3000-30000w
  • 2.7G
  • ±0.03mm/m
  • ±0.05mm/m
  • 196m/min
  • 15s
  • 10030kg
  • 9100×3450×2250mm
  • MACH4020
  • 4000×2000mm
  • 3000-30000w
  • 2.7G
  • ±0.03mm/m
  • ±0.05mm/m
  • 196m/min
  • 20s
  • 13600kg
  • 11200×3800×2250mm
  • MACH6025
  • 6000×2500mm
  • 6000-30000w
  • 2.4G
  • ±0.03mm/m
  • ±0.05mm/m
  • 169m/min
  • 30s
  • 19000kg
  • 15200×4400×2250mm
